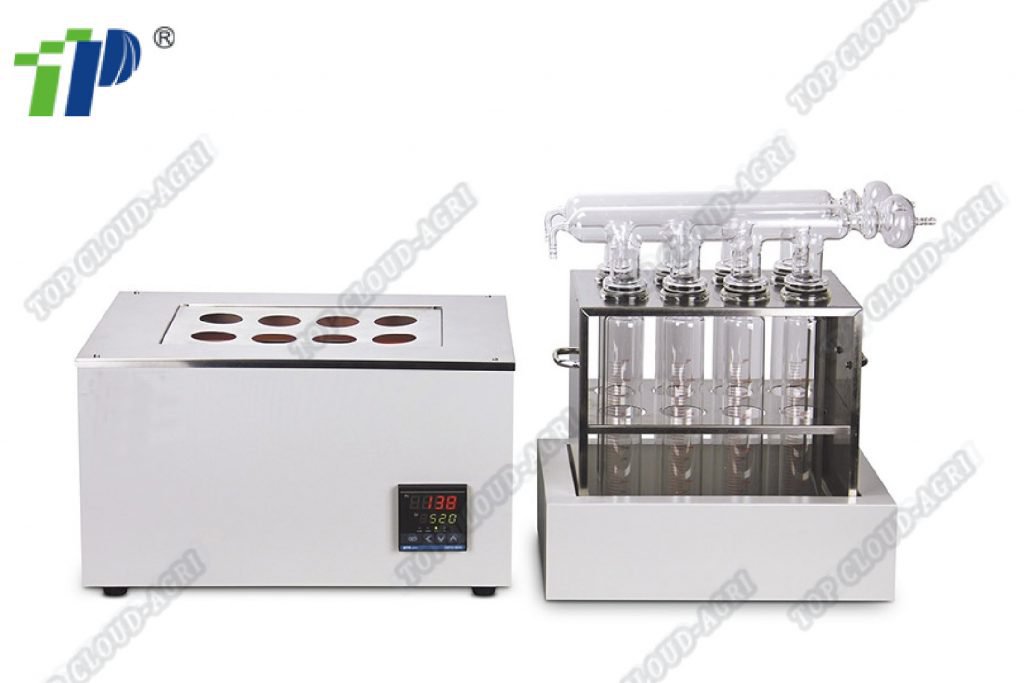

Digital Infrared Digestive Furnace

Digital Infrared Digestive Furnace

Breif Introduction

Digital Digestive Furnace could test the nitrogen digestion with the principle of Kjeldahl. This digestive furnace is a small one with beautiful appearance,and it is easy to operate. The digital digestive furnace has three types with 4holes, 8holes and 20 holes which is widely used for nitrification in the fields of agriculture, forestry, environmental protection, geology, chemical industry, food industry etc.

Characteristics

Ø Type C digestive furnace adopts quartz infrared heating pipe, the radiation is primary and the conduction is auxiliary; short heating time, high efficiency.
Ø Machine box adopts specially made plastic spray steel; working area adopts stainless steel materials, has good corrosion resistance.
Ø Double-shell design, double thermal insulation effect with air thermal insulation layer and aluminum silicate thermal insulation layer
Ø Has multiple protection: overpressure, over current, overheating
Ø Small and beautiful, easy to operate, user-friendly.
Ø Holes with 4, 8, 20

Parameter

· Model: KDN-04C/ KDN-08C/ KDN-20C

· Heating Module Material: Infrared

· Temperature control mode: Digital

· Temperature control range: room temperature-600℃

· Temperature control accuracy:±1℃

· Measurement range: 0.1mgN-200mgN(mg nitrogen)

· Digestive pipe capacity:300ml

· Power: 1KW/ 1.5KW/2.5KW

· Operating voltage:AC220V/50Hz
